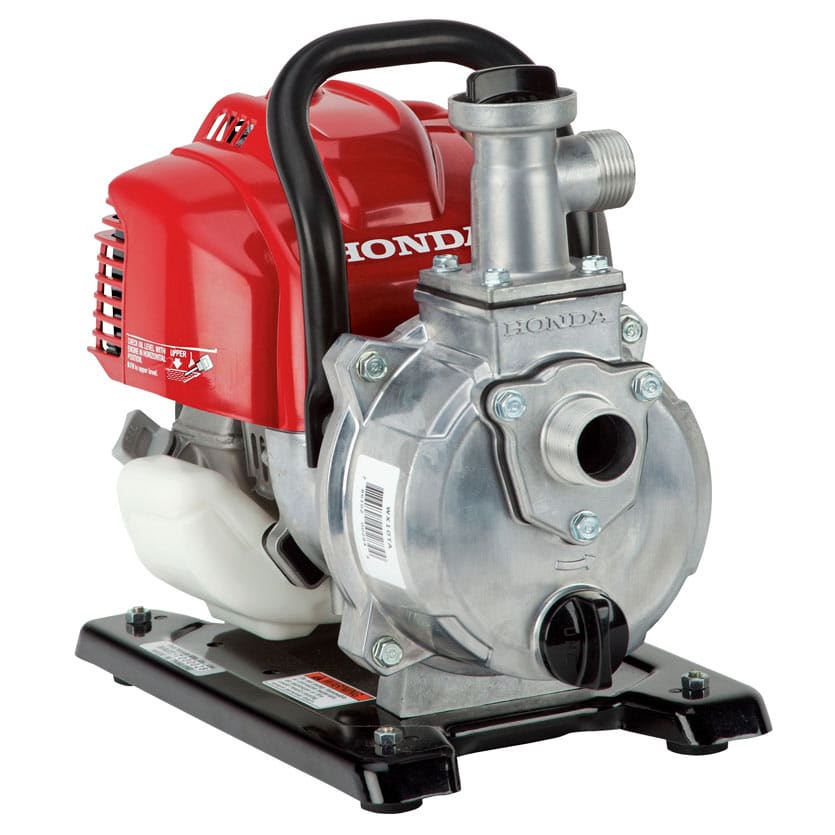

Honda WX10

$409.00

SKU: 553 Category: Tag:

Product Description

Engine GX25
Displacement 25cc
Bore and stroke 1.4″ x 1.0″
Compression Ratio 8.0:1
Oil Alert N/A
Pump type General purpose Centrifugal Self-priming
Volute Aluminum
Impeller Aluminum
Mechanical Seal (Pump case / impeller) Carbon/Ceramic
Priming time 80 sec. at 16.4 ft.
Drive system Direct
Discharge capacity 32 gal./min.
Suction port diameter 1.0″ NPT
Discharge port diameter 1.0″ NPT
Total head lift 121 ft.
Suction head lift 26 ft.
Maximum pressure 52 psi
Solids handling N/A
Dimensions (LxWxH) 13.4″x8.7″x11.6″
Dry weight 13 lbs.
Fuel Capacity 0.56 qt
Run Time @ Max Discharge 0.9 hr
Strainer Part # 78325-YB0-711
Residential Warranty 2 years
Commercial Warranty 1 year
