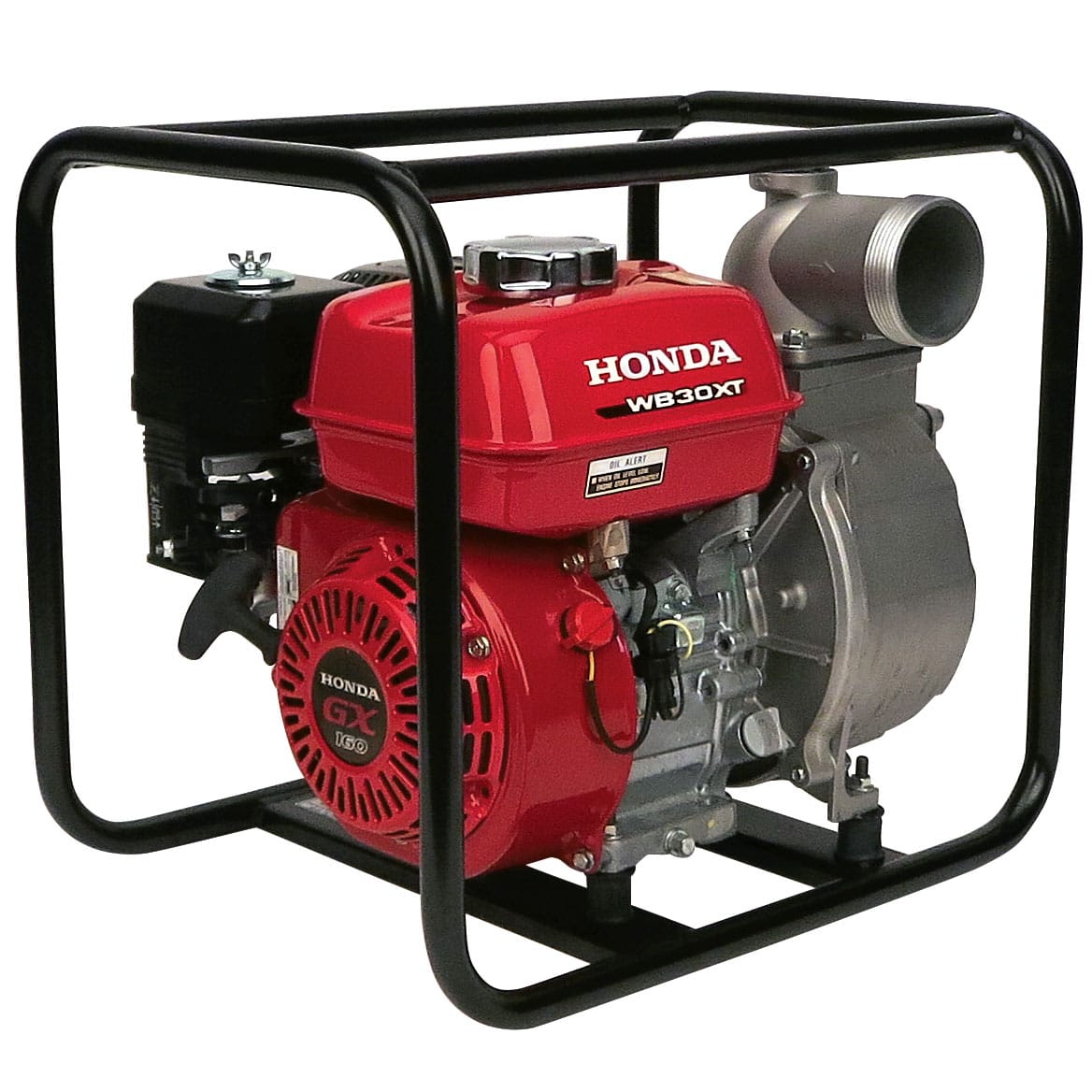

Honda WB30

$569.00

Out of stock

SKU: 569 Category: Tag:

Product Description

Engine GX160
Displacement 163cc
Bore and stroke 2.7″ x 1.8″
Compression Ratio 9.0:1
Oil Alert Std
Pump type Centrifugal, Self-priming
Volute Rigid Mounted Cast Iron
Impeller 4 Vane Cast Iron
Mechanical Seal (Pump case / impeller) Silicon Carbide/Silicon Carbide
Priming time 150 sec @16.4 ft.
Drive system Direct
Discharge capacity 290 gal/min
Suction port diameter 3″ NPT
Discharge port diameter 3″ NPT
Total head lift 85 ft.
Suction head lift 25 ft.
Maximum pressure 37 psi
Solids handling N/A
Dimensions (LxWxH) 20.1″x 15.2″ x 17.9″
Dry weight 57 lb.
Fuel Capacity 0.82 gal
Run Time @ Max Discharge 1.9 hr
Strainer Part # 78325-YG4-000
Residential Warranty 3 years
Commercial Warranty 3 years
