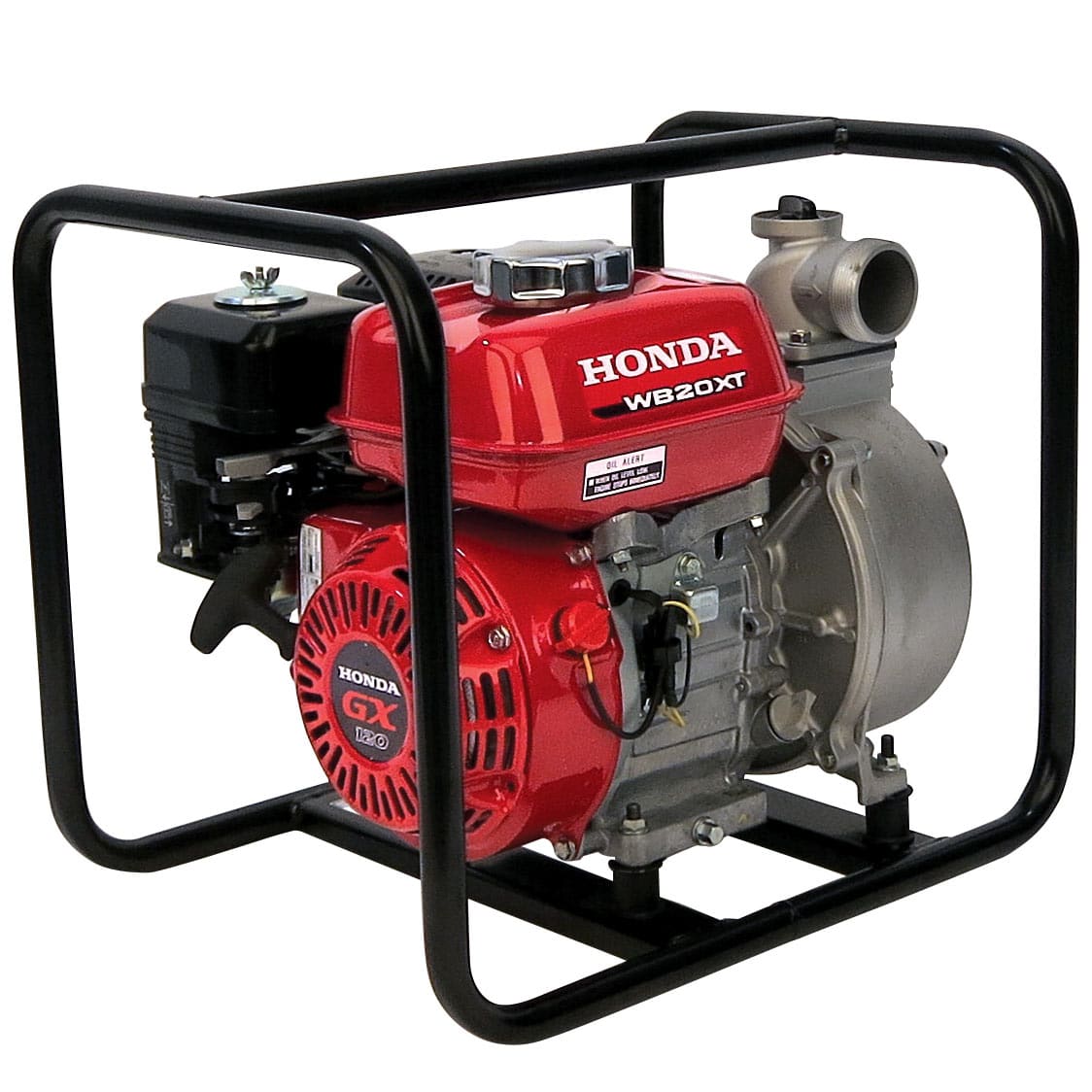

Honda WB20

$439.00

SKU: 568 Category: Tag:

Product Description

Engine GX120
Displacement 118cc
Bore and stroke 2.4″ x 1.7″
Compression Ratio 8.5:1
Oil Alert Std
Pump type Centrifugal, Self-priming
Volute Rigid Mounted Cast Iron
Impeller 4 Vane Cast Iron
Mechanical Seal (Pump case / impeller) Silicon Carbide/Silicon Carbide
Priming time 110 sec @ 16.4 ft.
Drive system Direct
Discharge capacity 164 gal/min
Suction port diameter 2″ NPT
Discharge port diameter 2″ NPT
Total head lift 105 ft.
Suction head lift 25 ft.
Maximum pressure 45 psi
Solids handling N/A
Dimensions (LxWxH) 19.3″ x 14.4″ x 16.5″
Dry weight 44 lb.
Fuel Capacity 0.53 gal
Run Time @ Max Discharge 1.7 hr
Strainer Part # 78325-YG3-000
Residential Warranty 3 years
Commercial Warranty 3 years
