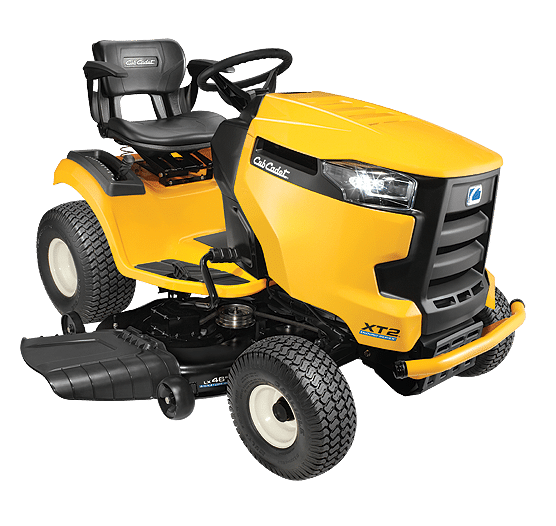

Cub Cadet LX46

$2,199.00

SKU: 710 Categories: , Tag:

Product Description

SPECIFICATIONS
Arm Rests
Standard

ENGINE
Engine Type
24 HP professional-grade Kohler® 7000 Series OHV

Cylinders/Material
Twin/Cast-iron sleeve

Lubrication
Fully pressurized automotive-style oil pump w/ spin-on oil filter

POWER SYSTEM
Powertrain
Tuff Torq® foot-controlled hydrostatic transmission (K46)

Rear Differential Lock
N/A

Engine to Transmission
Heavy-duty belt

Cruise Control
Soft touch engagement

Transmission Housing
Cast aluminum

STEERING
Rear Axle
3/4″ w/dual PM steel drive hubs

Steering/Turning Radius
Optimized steering system, manual sector and pinion/16″

Front Pivot Bar
Heavy-duty cast-iron (5-year limited warranty/unlimited hours)

Front Axles
Heavy-duty 3/4″ through machined bushings

Ball Joints
Fully-adjustable/Automotive-style

CHASSIS
Hood
Front pivot, High impact with quick removal design

FRAME
Frame
Fully robotically-welded frame with new e-coating corrosion defense system (5-year limited warranty)

Bumper
Single-tube

ELECTRICAL SYSTEM
Battery Voltage
300 cold crank amps

Charging System
Flywheel Alternator – 12 amp regulated

Headlights
LED High Illumination

System Monitor Package
Digitial hour meter/service minder, oil, battery, brake and PTO start sequence

Cub Connect™
N/A

CONTROLS
Brakes
Automotive-style disc

OPERATION
Safety Systems
Neutral Start, operator presence, reverse safety switch, brake pedal lock, RevTek reverse mowing technology

PTO Clutch
Electronic fingertip engagement

Seat
Cub Comfort™ high-back seat with 10 degree incline and slide

DIMENSIONS
Length/Width/Height
68″/54″/42.5″

ADDITIONAL SPECIFICATIONS
Tires (Front/Rear)
15″ x 6″ ball bearing/20″ x 8″

Tire Tread
Multi Trac

Forward Speed
5.5 mph

Reverse Speed
3.1 mph

Fuel Tank Capacity
3 gal. easy fill, rustproof

Engine Oil Capacity
2.0 qt.

Wheelbase
47″

Estimated Weight
600 lbs.

MOWER DECK
Deck Lift
Lever/12-position/spring-assisted

Cutting Width/Blades
46″/Twin Blades

Deck Construction
Stamped

Deck Cutting Height
1″ – 4″

Anti-scalping Wheels (front/rear)
2 Ball/2 Narrow

Mulch Kit
Optional

Deck Spindles
3/4″ with steel cap and Triple Lip Sealed

Deck Pulleys
Split steel spindle pulleys/oversized heavy-duty idlers

Deck Attach/Removal
QuickAttach™ (no tools required)

Deck Wash
Patented SmartJet™ high-pressure deck washing system

WARRANTY
Warranty
3-year unlimited hours (includes powertrain) & 5-year chassis & front axle unlimited hours/limited lifetime fabricated deck shell
